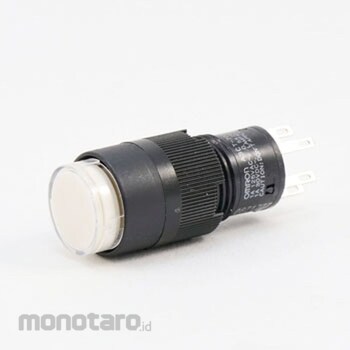

OMRON Pushbutton Switch (Round) (LED) (Round Body φ12) A3C A3CT-90B1-24EW 1pc

Name: OMRON Pushbutton Switch (Round) (LED) (Round Body φ12) A3C A3CT-90B1-24EW 1pc
Brand: OMRON
SKU: S029562961
Price: 389900 IDR
Availability: OutOfStock

#Nomor SKU S029562961

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	A3CT-90B1-24EW
Unit	1pc
Vibration Resistance (Malfunction)	10 to 55Hz, double amplitude 1.5mm (malfunction 1ms)
Mechanical Durability	100,000 times or more (once set or reset)
Operating Ambient Temperature (°C)	-10 to +55 (with no icing or condensation)
Light Source	LED
Contact Configuration	1a1b
Impact Resistance Durability (m/s²)	Up to 500
Mounting Hole Diameter P (mm)	12
Insulation Resistance (MΩ)	100 or more (with DC500V mega)
Protection Class	IP40
Type of Operation	Alternate
Withstand Voltage	Between homopolar terminals, between lamp terminals (when incandescent lamp and LED lamp are not mounted): AC2500V 50 / 60Hz 1min / Dipolar terminal, between each terminal and ground: AC2000V 50 / 60Hz 1min
Button Shape	Round
Terminal Shape	Solder terminal
Shock Resistance Malfunction (m/s²)	Up to 150 (within malfunction 1ms)
Storage Temperature (°C)	-25 to +65 (with no icing or condensation)
Applicable Voltage (V)	DC24
Ambient Humidity to Use	35 to 85%RH
Contact Resistance (miliΩ)	50 or less (initial value)
Type	Illuminated
M Code	39013396
Berat (Kg)	0.2
Tanggal Produk Terdaftar	23 November 2021
Terakhir Diperbaharui	20 August 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Body length 20mm, round body φ12 series.
High brightness and uniform surface illumination.
Drilling is easy due to the round body.
Small and good operation feel.

Feature

Torso length 20 mm, round body type φ12 series.
Uniform light light with high brightness.
Easy drilling for round body shapes.
Achieves a small and good operation feel.
