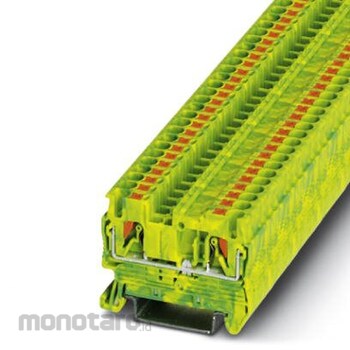

Phoenix Contact Ground Modular Terminal Block PT 2,5-PE 1pack(50pcs)
Rp3.299.900
Persediaan
Spesifikasi Produk
| Model Number | PT 2,5-PE |
|---|---|
| Unit | 1pack(50pcs) |
| Country of Origin | DE (Germany) |
| Color | Green-Yellow |
| Insulating Material | PA |
| Rated Surge Voltage (kV) | 6 |
| Degree of Pollution | 3 |
| Overvoltage Category | III |
| Insulating Material Group | I |
| Open Side Panel | Yes |
| Back of the Hand Protection | Guaranteed |
| Finger Protection | Guaranteed |
| Maximum Load Current | With 4 mm² conductor cross section, rigid |
| Area Of Application | Railway industry; Machine building; Plant engineering; Process industry |
| Mounting Type | NS 35/7,5 |
| Test Spectrum | Service life test category 2, bogie-mounted |
| Test Frequency (Hz) | f1 = 5 to f2 = 250 |
| Number of Rows | 1 |
| Number of Connections | 2 |
| Nominal Cross Section Area (mm²) | 2.5 |
| Part Number | 3209536 |
| Berat (Kg) | 990.0 |
| Tanggal Produk Terdaftar | 29 September 2021 |
| Terakhir Diperbaharui | 27 June 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Ground modular terminal block, connection method: Push-in connection, number of connections: 2, cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 5.2 mm, height: 35.3 mm, color: green-yellow, mounting type: NS 35/7,5, NS 35/15Ketentuan dan Kondisi Barang
