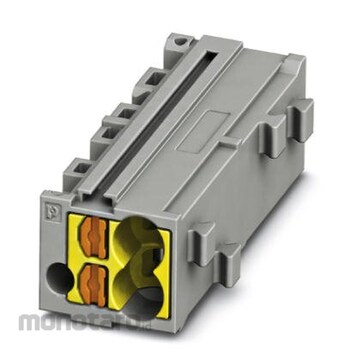

Phoenix Contact Marshalling Patchboard PTMC 1,5-2 /YE 1pack(10pcs)

Name: Phoenix Contact Marshalling Patchboard PTMC 1,5-2 /YE 1pack(10pcs)
Brand: Phoenix Contact
SKU: S028784500
Price: 449900 IDR
Availability: InStock

#Nomor SKU S028784500

Phoenix Contact

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	PTMC 1,5-2 /YE
Unit	1pack(10pcs)
Country of Origin	PL (Poland)
Color	Gray
Insulating Material	PA
Rated Surge Voltage (kV)	6
Degree of Pollution	3
Overvoltage Category	III
Insulating Material Group	I
Maximum Load Current (A)	24 (in case of 2.5 mm² conductor cross section, the maximum load current must not be exceeded by the total current ofll connected conductors.)
Nominal Current IN (A)	17.5
Nominal Voltage Un (V)	500
Open Side Panel	No
Back of the Hand Protection	Guaranteed
Finger Protection	Guaranteed
Bending Test Rotation Speed (rpm)	10
Bending Test Turns	135
Number of Positions	1
Color of Connection Elements	Yellow
Mounting Type	For snapping onto a DIN rail adapter
Number of Rows	1
Part Number	3270437
Berat (Kg)	31.5
Tanggal Produk Terdaftar	29 September 2021
Terakhir Diperbaharui	27 June 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Feature

Marshalling patchboard, nom. voltage: 500 V, nominal current: 17.5 A, cross section: 0.14 mm² - 2.5 mm², AWG: 14 - 26, connection method: Push-in connection, number of positions: 1, number of connections: 4, width: 11 mm, length: 8.6 mm, color: gray, color of connection elements: yellow, mounting: for snapping onto a DIN rail adapter, for snapping onto a cover flange
