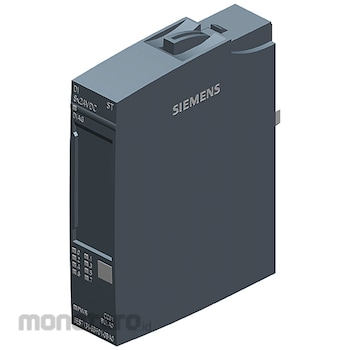

SIEMENS SIMATIC ET 200SP, Digital Input Module 6ES7131-6BF01-2BA0 1pc
Rp3.099.900
Persediaan
Spesifikasi Produk
| Model Number | 6ES7131-6BF01-2BA0 |
|---|---|
| Unit | 1pc |
| Product Type Designation | DI 8x24VDC ST |
| HW Functional Status | From FS02 |
| Firmware Version | V0.0 |
| Usable Base Units | BU type A0 |
| Color Code for Module-Specific Color Identification Plate | CC01 |
| Permissible Range, Lower Limit (DC)(V) | 19.2 |
| Permissible Range, Upper Limit (DC)(V) | 28.8 |
| Current Consumption Max. (mA) | 50 (All channels are supplied from the encoder supply) |
| Number of Outputs | 8 |
| Output Voltage Min. (V) | 19.2 |
| Monitoring of the Supply Voltage (PWR-LED) | Yes; green PWR LED |
| Channel Status Display | Yes; green LED |
| Diagnostics Indication LED for Module Diagnostics | Yes; green/red DIAG LED |
| Dimensions (WxHxD) (mm) | 15x73x58 |
| Weight (g) | approx. 28 |
| Berat (Kg) | 1.6 |
| Tanggal Produk Terdaftar | 29 December 2020 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
SIMATIC ET 200SP, Digital input module, DI 8x 24V DC Standard, type 3 (IEC 61131), sink input, (PNP, P-reading), Packing unit: 1 piece, fits to BU-type A0, Colour Code CC01, input delay time 0,05..20ms, module diagnostics for: short-circuit of sensor supply, wire break, supply voltage
