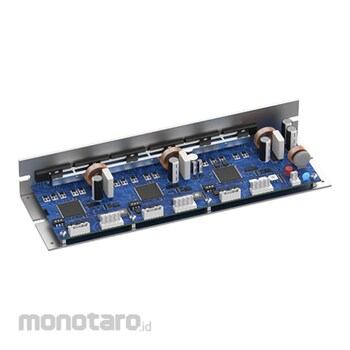

Autonics 5-Phase Stepper Motor&Drivers MD5 Series MD5-HD14-3X 1pc

Name: Autonics 5-Phase Stepper Motor&Drivers MD5 Series MD5-HD14-3X 1pc
Brand: Autonics
SKU: S023653351
Price: 5899900 IDR
Availability: OutOfStock

#Nomor SKU S023653351

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	MD5-HD14-3X
Unit	1pc
Operation Method	Bipolar constant current pentagon drive
Applied Motor	5-phase stepper motor
Resolution	FULL STEP(1-division), HALF STEP(2-division), Micro STEP(4, 5, 8, 10, 16, 20, 25, 40, 50, 80, 100, 125, 200, 250-division)
Power Supply (V)	DC 20-35
Max. Run Current (A)	1.4/Phase
Max. Current Consumption (A)	7
Number of Axes	3-axis
Pulse Width (µs)	Min. 1 (CW, CCW), Min. 1ms(HOLD OFF)
Duty Rate (%)	50 (CW, CCW)
Rising/Falling Time (ns)	Below 130 (CW, CCW)
Pulse Input Voltage (V)	[H]: DC 4-8 , [L]: DC 0-0.5
Pulse Input Current (mA)	7.5-14 (CW, CCW), 10-16 (HOLD OFF, DIVISION SELECTION, ZERO OUT)
Maximum Input Pulse Frequency (kHz)	Max. 500 (CW, CCW)
Ambient Temperature (°C)	0 to 40, storage: -10 to 60
Ambient Humidity (% RH)	35 to 85, storage: 35 to 85
Berat (Kg)	0.5
Tanggal Produk Terdaftar	13 December 2020
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The MD5 series 5-phase stepper motor drivers allow extremely precise motor control with low mechanical noise and low vibration operation. The isolated photocoupler input design minimizes influence from electrical noise. The motors also feature various built-in functions including auto current down and self-diagnosis. The microstepping drive models offer low-speed rotation and extreme precision with up to 250 division control.

Warning

Built-in zero point excitation output signal is optional.
Since torque characteristics are improved but the driver temperature rises with the 30VDC power supply, the driver should be installed at the well ventilated environment. Torque is variable by power supply.
Max. current consumption: Based on the ambient temperature 25℃, ambient humidity 55%RH.
RUN current varies depending on the input RUN frequency, and the max. instantaneous RUN current varies also.
Max. input pulse frequency is max. frequency to be input and is not same as max. pull-out frequency or max. slewing frequency.
The weight includes packaging. The weight in parenthesis is for unit only.
Environment resistance is rated at no freezing or condensation.Image on this page only as Representative Image, Please check the specifications of each size and color for details
