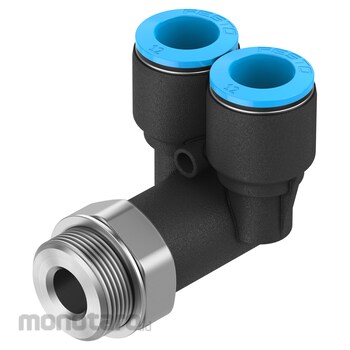

FESTO Push-in Y-fitting QS Series QSYL-G3/8-12 1pc

#Nomor SKU S023113510

Spesifikasi Produk

Model Number	QSYL-G3/8-12
Unit	1pc
Size	Standard
Maritime Classification	See certificate
Nominal Width (mm)	9.7
Type Code	QSYL
Type of Seal on Screwed Trunnion	Sealing ring
Mounting Position	Any
Packing Size	1
Design	Push-pull principle
Operating Pressure for Entire Temperature Range (bar)	-0.95 - 6
Temperature-Dependent Operating Pressure (bar)	-0.95 - 14
Operating Medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Information on Operating and Pilot Media	Operation with oil lubrication possible
Corrosion Resistance Class (CRC)	1 - Low corrosion stress
Ambient Temperature (°C)	-10 - 80
Nominal Tightening Torque (N m)	15.5
Tolerance for Nominal Tightening Torque (%)	± 20
No. of Outlets	2
No. of Supply Lines	1
Pneumatic Connection 1	External thread G3/8
Berat (Kg)	0.6
Tanggal Produk Terdaftar	17 November 2020
Terakhir Diperbaharui	27 May 2025
