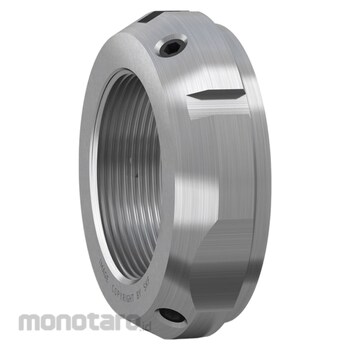

SKF Mur Pengunci Presisi KMT 2 with Locking Pins 1pc

Name: SKF Mur Pengunci Presisi KMT 2 with Locking Pins 1pc
Brand: SKF
SKU: S017178037
Price: 709900 IDR
Availability: OutOfStock

#Nomor SKU S017178037

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	KMT 2
Unit	1pc
Thread Designation	M15x1
Bore Diameter (mm)	15
Outside Diameter d3 (mm)	33
Width B (mm)	16
Locking Device	Incorporated in the lock nut
Nut for Hydraulic Mounting	No
Associated Mounting Tool	HN 4
Thread G	M15x1
Outside Diameter Locating Side Face d1 (mm)	28
Inner Diameter Locating Side Face d4 (mm)	16
Diameter Side Face Opposite to Bearing d5 (mm)	26
Width Flat Spanner M (mm)	30
Width Locating Slot b (mm)	4
Depth Locating Slot h (mm)	2
Axial Static Load Carrying Capacity (kN)	60
Associated Spanner (Hook spanner in accordance with DIN 1810)	HN 4
Set / Locking Screw Size	M5
Recommended Tightening Torque (N m)	4.5
Berat (Kg)	1.2
Tanggal Produk Terdaftar	26 August 2020
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

KMT precision lock nuts are intended for applications where high precision, simple assembly and reliable locking are required. The three equally-spaced locking pins enable these lock nuts to be accurately positioned at right angles to the shaft. However, they can also be adjusted to compensate for slight angular deviations of adjacent components. Maximum axial run-out between the locating face and thread (up to size 40): 0.005 mm

Warning

Image may differ from product. See technical specification for details.

Feature

- No keyway required
- Withstands high axial loads
- Reliable, effective locking mechanism
- Designed for frequent and simple installation and removal
- Available for thread M 10x0.75 to M 200x3 (sizes 0 to 40) and Tr 220x4 to Tr 420x5 (sizes 44 to 84)
