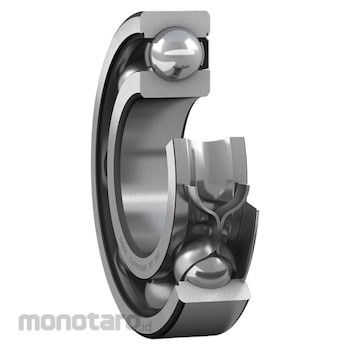

SKF Single Row Deep Groove Ball Bearing dengan Segel Tipe Z 6207-Z 1pc

Name: SKF Single Row Deep Groove Ball Bearing dengan Segel Tipe Z 6207-Z 1pc
Brand: SKF
SKU: S017161862
Price: 109900 IDR
Availability: InStock

#Nomor SKU S017161862

SKF

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	6207-Z
Unit	1pc
Bore Diameter d (mm)	35
Outside Diameter D (mm)	72
Width B (mm)	17
Dimension D1 (mm)	46.94
Dimension D2 (mm)	62.69
Dimensions r1,2 (mm)	min. 1.1
Diameter of Shaft Abutment da (mm)	min. 42-46.8
Diameter of Housing Abutment Da (mm)	Max. 65
Dimensions ra (mm)	Max. 1
Basic Dynamic Load Rating (kN)	27
Basic Static Load Rating (kN)	15.3
Fatigue Load Limit (kN)	0.655
Reference Speed (rpm)	20000
Limiting Speed (rpm)	13000
Number of Rows	Single Row
Bore Type	Cylindrical
Cage	Sheet Metal
Radial Internal Clearance	CN
Bearing Material	Bearing Steel
Coating	Without
Sealing	Shield on One Side
Sealing Type	Non-Contact
Berat (Kg)	1.2
Tanggal Produk Terdaftar	26 August 2020
Terakhir Diperbaharui	21 July 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

6207-Z
SKF Explorer
Deep groove ball bearings
Bearing data
- Tolerances : Normal (metric) , P6 , P5 , Normal (inch)
- Radial internal clearance : Matched bearing pairs , Stainless steel d < 10 mm , Other bearings
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fits

Warning

Image may differ from product. See the technical specification for details.

Feature

- Integral sealing prolongs bearing service life
- Simple, versatile and robust design
- Low friction and high-speed capability
- Accommodate radial and axial loads in both directions
- Require little maintenance
