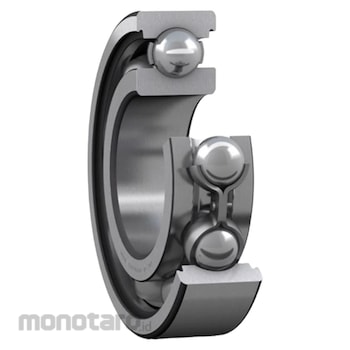

SKF Single Row Deep Groove Ball Bearings 61908 1pc
Rp539.900
Persediaan
Spesifikasi Produk
| Model Number | 61908 |
|---|---|
| Unit | 1pc |
| Bore Diameter d (mm) | 40 |
| Outside Diameter D (mm) | 62 |
| Width B (mm) | 12 |
| Dimensions d1 (mm) | 46.9 |
| Dimension D1 (mm) | 55.55 |
| Recess Diameter D2 (mm) | 57.55 |
| Dimensions r1,2 (mm) | min. 0.6 |
| Diameter of Shaft Abutment da (mm) | min. 43.2 |
| Diameter of Housing Abutment Da (mm) | max. 58.8 |
| Dimensions ra (mm) | max. 0.6 |
| Basic Dynamic Load Rating (kN) | 13.8 |
| Basic Static Load Rating (kN) | 10.0 |
| Fatigue Load Limit (kN) | 0.425 |
| Reference Speed (rpm) | 24000 |
| Limiting Speed (rpm) | 14000 |
| Number of Rows | Single Row |
| Bore Type | Cylindric |
| Cage | Sheet Metal |
| Radial Internal Clearance | CN |
| Bearing Material | Bearing Steel |
| Berat (Kg) | 1.2 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 21 July 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
Warning
Image may differ from product. See the technical specification for details.Feature
- Simple, versatile and robust design- Low friction
- High-speed capability
- Accommodate radial and axial loads in both directions
- Require little maintenance
