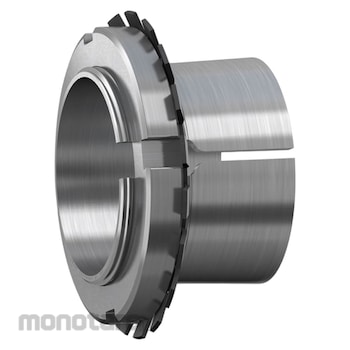

SKF Adapter Sleeves HE 317 with KM Lock Nut and MB Lock Washer, Metric Dimensions with Inch Bore 1pc
Rp669.900
Persediaan
Spesifikasi Produk
| Model Number | HE 317 |
|---|---|
| Unit | 1pc |
| Bore Diameter d1 (mm) | 76.2 |
| Width B1 (mm) | 63 |
| Thread Designation | M85x2 |
| Taper | 1:12 |
| Holes for Oil Injection | Without |
| Outside Diameter Small Taper d (mm) | 85 |
| Outside Diameter Lock Nut d3 (mm) | 110 |
| Width Lock Nut B (mm) | 16 |
| Lock Nut | KM 17 |
| Locking Device | MB 17 |
| Width Lock Nut Including Lock Washer B4 (mm) | 18 |
| Thread G | M85x2 |
| External Taper | 1:12 |
| Hydraulic Nut | HMV 17E |
| Berat (Kg) | 1.2 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 21 July 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.
Warning
Image may differ from product. See technical specification for details.Feature
- Easy to install- Complete with lock nut
- Complete with locking device
