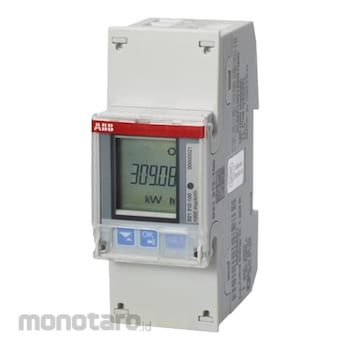

The ABB advanced electricity meter has easy to read back lighted display. It is compact and DIN-rail mountable. It is intended for use in the commercial or residential buildings etc. This meter has several instrumentation values, 25 possible alarms and event logs. It is single phase direct connected for active and reactive energy. Import and export of energy in different registers and one total. It has up to 4 tariffs and controlled via input and communication.
Can be used in 3 or 4 wire systems
Resettable register for intermediate values
Two outputs and inputs for pulses or alarm etc.
RS-485 communication over Modbus RTU or EQ Bus
IEC approved + MID approved and verified
ABB Electricity Meter B21 312-100 1pc
Rp1.899.900
Persediaan
Spesifikasi Produk
| Model Number | B21 312-100 |
|---|---|
| Unit | 1pc |
| Rated Current (A) | 65 |
| Rated Voltage (V） | 220-240 |
| Accuracy | Active Energy Class B MID (±1%) |
| Communication | Modbus RTU |
| Communication Interface | Modbus RS485 |
| Connecting Capacity Main Circuit (mm²) | 1 to 25 |
| Current Rating (A) | 5 |
| Enclosure Material | Polycarbonate in transparent front glass. Glass reinforcedpolycarbonate in bottom case and upper case. Polycarbonatein terminal cover. |
| Function | Electricity meter |
| I/O Option | 2 digital output, 2 digital input |
| Measuring Instrument Conformity | Measurement Instrument Directive (MID) |
| Meter Tariff Control | External |
| Meter Tariff Rating | Multi-Tariff |
| Meter Type | Direct connected |
| Mounting Type | DIN-Rail |
| Number of Counter Positions | 7 |
| Number of Digital In/Outputs | 2 DI 2 DO |
| Number of Phases | Single-phase |
| Number of Poles | 1 |
| Power Consumption (W) | 0.414 |
| Product Length (mm) | 65 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 03 July 2019 |
| Terakhir Diperbaharui | 27 May 2025 |
