CKD New Joint GW (Fitting) / (One Side Elbow) Rosewood GWL10-6 1pc
Rp47.000
Persediaan
Spesifikasi Produk
| Model Number | GWL10-6 |
|---|---|
| Unit | 1pc |
| Screw Size (mm) | R1/8 |
| Maximum Working Pressure (MPa) | 1 |
| Effective Cross Section Area (mm²) | 24.3 |
| Negative pressure performance (kPa) | -100 |
| Minimum Hole Diameter (mm) | 6.5 |
| Operating Temperature (°C) | -10 to 60 (but not frozen) |
| Used Tube | Soft nylon tube (F-12 * * ) / Urethane tube (U-95 * * , NU- * * ) |
| Applicable pipe outer diameter ( phi mm) | 10 |
| Working Fluid | Compressed air |
| TRUSCO Number | 401-4898 |
| M Code | 39608493 |
| Berat (Kg) | 0.8 |
| Tanggal Produk Terdaftar | 11 May 2019 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

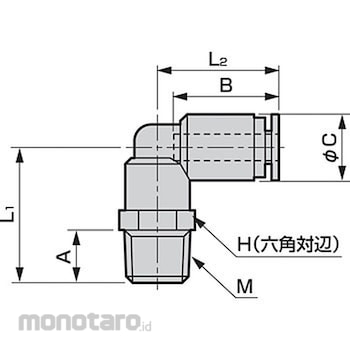

And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension C (mm)=17.5; Dimension L2 (mm)=27; Dimension A (mm)=8; Dimension H (mm)=17; Dimension L1 (mm)=28; Dimension B (mm)=21.5
