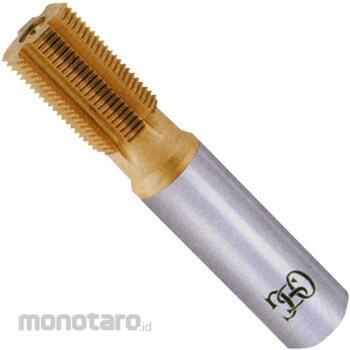

OSG Mc Planet Cutter (PNGT) PNGT 12x30xP1-INT 1pc
Rp7.799.900
Persediaan
Spesifikasi Produk
| Model Number | PNGT 12x30xP1-INT |
|---|---|
| Unit | 1pc |
| Minimum Processing Diameter (φ mm) | 16 |
| Blade Length Lc (mm) | 30 |
| Shank Diameters d (mm) | 12 |
| Number of Flutes | 4 |
| Nominal Dimension | M12 |
| Lower Neck Part L1 (mm) | 38 |
| Pitch | 1 |
| Outer Diameter (φ mm) | 12 |
| Screw Diameter | M12 |
| Material | Cobalt High (high-speed steel steel) HSS-Co |
| Overall Length L (mm) | 105 |
| Pitch (mm) | 1 |
| EDP No. | 8306022 |
| TRUSCO Number | 633-4253 |
| M Code | 09023497 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 27 February 2019 |
| Terakhir Diperbaharui | 09 July 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Thread cutting is performed using planetary motion by the simultaneous three axis control function of the machining center. If one pitch is the same pitch, you can process different screws. You can also process either right-handed left-handed screws.
