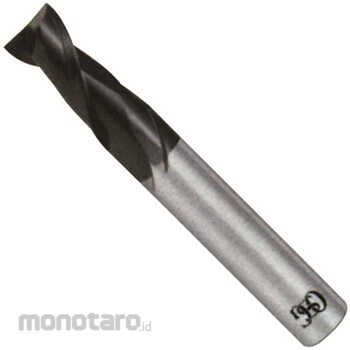

OSG Ultrafine Crystal DIA Coat 2 Blade Short Carbide Square End Mill (DIA-EDS) DIA-EDS 1.5 1pc

Name: OSG Ultrafine Crystal DIA Coat 2 Blade Short Carbide Square End Mill (DIA-EDS) DIA-EDS 1.5 1pc
Brand: OSG
SKU: S009407686
Price: 3399900 IDR
Availability: InStock

#Nomor SKU S009407686

OSG

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	DIA-EDS 1.5
Unit	1pc
Material	Cemented carbide
Blade Length (mm)	4
Overall Length L (mm)	40
Surface Processing	Diamond coating
Rotation Speed (rpm)	Aluminium Alloy spreading material: 36000. Aluminium Alloy, die casting casting: 36000. Copper alloy: 20000. Graphite: 36000
Shank Diameters d (mm)	4
Helix Angle (°)	35
Sending Speed (mm/minute)	Aluminium Alloy spreading material: 520. Aluminium Alloy, die-cast casting: 430. Copper alloy: 240. Graphite: 430
Depth of cut (aa)	Groove /D<=phi2.5: 0.25 D,φ2.5 D: 0.5 D. Side surface aa/D ≤φ2.5: 1.5 D, φ2.5 <D: 0.05 D. (ar) D ≤ φ2.5: 1.5 D, φ2.5 <D: 0.1 D
EDP No.	8504603
M Code	09087827
Berat (Kg)	0.4
Tanggal Produk Terdaftar	27 February 2019
Terakhir Diperbaharui	07 August 2025
