Feature

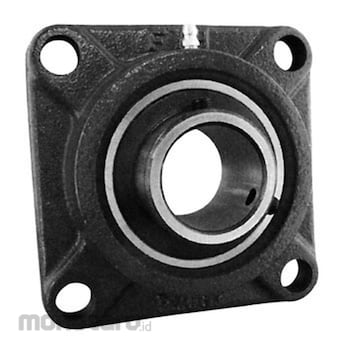

Bearing unit combining ball bearing for unit and bearing box with square flange. It is suitable for being mounted on a vertical surface such as machine side. .Installation of the bearing box on the machine body is done with 4 bolts.
FYH Square Flange Type Unit UCF207 1pc
Rp239.900
Persediaan
Spesifikasi Produk
| Model Number | UCF207 |
|---|---|
| Unit | 1pc |
| Dimension L | 117mm |
| Dimension A (mm) | 34 |
| Dimension J | 92mm |
| Standard Dynamic Load Rating | 25.7kN |
| Bearing Number | UC207 |
| Standard static Load Rating | 15.4kN |
| Dimension B | 42.9mm |
| Shaft Hole Classification | Cylindrical hole (with set screw) |
| Unit Weight | (Reference) 1.5kg |
| Mounting Bolt Nominal Designation | M12 |
| Dimension N | 14mm |
| Dimension AO | 44.4mm |
| Compatible | F207 |
| Coefficient | 13.9 |
| Dimension S | 17.5mm |
| Dimension D (mm) | 35 |
| Shape | Square flange type unit |
| Dimension A1 | 19mm |
| Cover | None |
| M Code | 7192753 |
| Berat (Kg) | 1.4 |
| Tanggal Produk Terdaftar | 14 November 2018 |
| Terakhir Diperbaharui | 27 May 2025 |
