Ideal for female threading of blind holes.
- Because it is subjected to homo processing, it is hard to weld and achieces a long service life. For general mild steel.

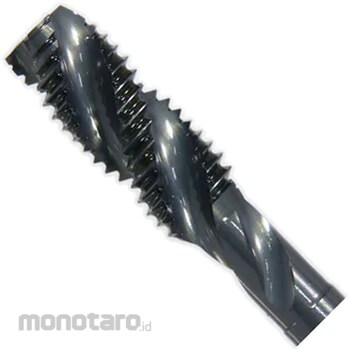

monotaro Spiral Tap (Homo Processing) (Tap Ulir) HM-M10 1pc
Rp219.900
Persediaan
Spesifikasi Produk
| Model Number | HM-M10 |
|---|---|
| Unit | 1pc |
| Shank Diameter (mm) | 7 |
| Chamfer | 2.0 ~ 3.0P |
| Grade | Equivalent to JIS class 2 |
| Shape | M6 or less will be the protruding center. |
| Surface Processing | Homo treatment |
| Female Screw Type | Metric thread |
| Material | High speed tool steel (HSS - E) |
| In Processing | For blind holes |
| Overall Length (mm) | 75 |
| Pitch (mm) | 1.5 |
| Screw Diameter | M10 |
| Number of Flutes | 3 |
| Screw Length (mm) | 24 |
| Spiral Groove Angle (Degree) | 40 |
| M Code | 18917298 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 17 July 2018 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
- Because there is fear of injury, please be sure to wear protective equipment when using. - Please do not use for purposes other than the original purpose.
