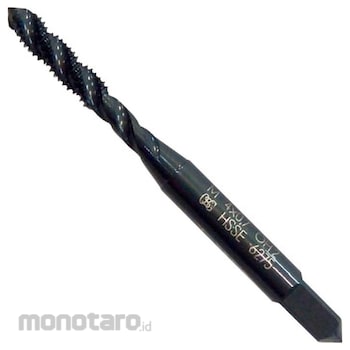

OSG Spiral Fluted Taps for General Application with OX 18616 Black M4x0.7 1pc

Name: OSG Spiral Fluted Taps for General Application with OX 18616 Black M4x0.7 1pc
Brand: OSG
SKU: S003223284
Price: 109900 IDR
Availability: OutOfStock

#Nomor SKU S003223284

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	18616
Unit	1pc
Shank Diameter (mm)	5
Helix Angle (°)	35
Presence/Absence of Protruding Center	Included
Overall Length (mm)	52
Accuracy notation	STD
Accuracy	OH2
Screw Length (mm)	8.4(13)
Nominal Size	M4×0.7
Number of Flutes	3
Type Of Thread	M
Material	High vanadium high speed steel_HSS-E
Surface Treatment	Homo processing
Chamfer	2.5P
Cell Spacing (mm)	0.7
Under Neck Length (mm)	21
TRUSCO Number	201-5072
M Code	06621106
Technical Data Sheet (TDS)	TDS Model S003223284
Berat (Kg)	0.1
Tanggal Produk Terdaftar	29 June 2017
Terakhir Diperbaharui	09 July 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Spiral tap for general homo processing.
Low carbon steel (C to 0.25%): ○, Medium carbon steel (C0.25% to 0.45%): ○, Cast steel: ○, Thermoplastic plastic: ○
* The dimensions in () are the old shape. The old shape will be changed to the new shape as soon as it is out of stock.

Feature

Features :
・Spiral flute
・Chips flow out against tapping direction(ejected from holes)
・Lower tapping torque and applicable for tapping to the bottom of holes
・Good cutting action
Application :
・For blind holes
・Materials where chips come out continuously in coil shape
For Material :
Low carbon steel/mild steel (C～0.25%)
Medium carbon steel (C0.25% to 0.45%)
High carbon steel (C0.45%~)
Alloy steel
Cast steel
Thermoplastic
