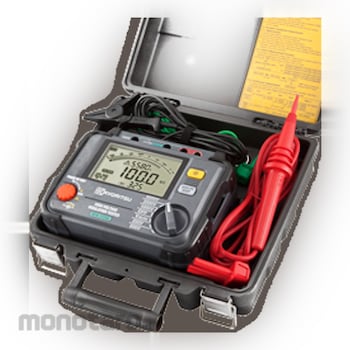

KYORITSU High Voltage Insulation Testers (Pengukur Isolasi) 3125A 250-5000V 1unit

Name: KYORITSU High Voltage Insulation Testers (Pengukur Isolasi) 3125A 250-5000V 1unit
Brand: KYORITSU
SKU: S000079918
Price: 16999900 IDR
Availability: InStock

#Nomor SKU S000079918

KYORITSU

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	3125A
Unit	1unit
Test Voltage (V)	250/500/1000/2500/5000
Resistance Range	250V = 0.0 - 100.0MegaOhm 500V = 0.0 - 99.9MegaOhm/ 80 - 1000MegaOhm 1000V = 0.0 - 99.9MegaOhm/ 80 - 999MegaOhm/ 0.80 - 2.00GigaOhm 2500V = 0.0 - 99.9MegaOhm/ 80 - 999MegaOhm/ 0.80 - 9.99GigaOhm/ 8.0 - 100.0GigaOhm 5000V = 0.0 - 99.9MegaOhm/ 80 - 999MegaOhm/ 0.80 - 9.99GigaOhm/ 8.0 - 99.9GigaOhm/ 80 - 1000GigaOhm
Measurement Voltage	AC: 30 - 600V (50/60Hz) DC: +/- 30 to +/- 600V
Dimension (LxWxD) (mm)	177x226x100, 300x315x125 (hard case)
Contents Included	7165A (Line probe: 3m), 7264 (Earth cord: 3m), 7265 (Guard cord: 3m), 8019 (Hook type prod), 9180 (3025A Hard case), 9181 (3125A Hard case), LR14 (Alkaline battery size C) x8, Instruction manual
Power Supply	DC12V : LR14/R14 x 8pcs
Berat (Kg)	3.9
Tanggal Produk Terdaftar	02 March 2017
Terakhir Diperbaharui	21 July 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

- Insulation Resistance up to 1T?.
- Short-Circuit Current up to 1.5mA.
- Wide Test Voltage from 250V to 5000V.
- Diagnosis Function of PI and DAR.
- Newly-designed alligator clip.
- It comes with a tough hard case.
- Filter function reduces noise interference for obtaining stable measurement.
- Large display with Bar Graph indication and backlight.
- Live voltage warning.
- Safety standard IEC 61010-1 CAT IV 300V / CAT III 600V.
