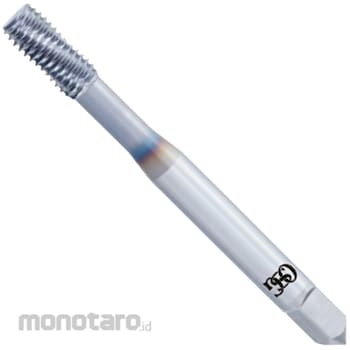

OSG High-efficiency, low-carbon rolling tap GRT

GREEN TAP (GRT) is a low-carbon product that reduces CO2 emissions by reducing the amount of electricity consumed during manufacturing through the adoption of a unique new manufacturing method.
GRT also provides consistent, high durability. Selecting high-performance, low-carbon products reduces your carbon footprint and contributes to the realization of a sustainable society.
- Special thread specifications for enhanced cooling effect: By supplying a large amount of cutting oil to the cutting edge, which generates the most heat, the cooling effect is enhanced and durability is improved.
- Large core thickness for high rigidity: The large core thickness improves breakage resistance. Achieves consistent high durability.
- Special thread specifications based on computerized plastic deformation analysis: Special thread specifications designed using computerized plastic deformation analysis create good internal threads with minimal collapse.
Mild steel/Low carbon steel/Medium carbon steel (C<0.45%):◎, High carbon steel (C0.45%~):◎, Alloy steel (SCM):◎, Tempered steel (25-35HRC):◎, Stainless steel (SUS304/SUS420):◎, Cast steel (SC):
, Copper: ◎, Brass/Brass castings: ◎, Aluminum rolled material: ◎, Aluminum alloy castings: ◎, Zinc alloy castings: ◎
*The accuracy column indicates the recommended accuracy of taps that are compatible with Class 2 female threads. The tolerance above the effective diameter is the same as the RH accuracy, but the tolerance is 18 μm.
*Tap accuracy does not guarantee female thread accuracy.
*A guide section of about 1P is left to improve ease of insertion into the pilot hole.
*The pilot hole diameter differs between grooveless taps and cutting taps.
*When machining stainless steel, please use a water-insoluble cutting oil or a water-soluble cutting oil with good lubricity.
