Rohde & Schwarz Hameg Bench Power Supply / Interface options to be purchased separately

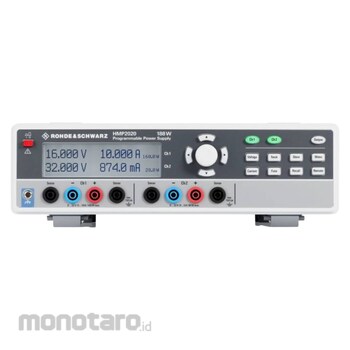

The Rohde & Schwarz HMP series Hameg 188W bench power supply has two-channels, an output voltage rating of 32V and first channel output current rating of 10A, second channel output current rating of 5A. These rugged instruments are ideal for a wide variety of requirements from educational to industrial applications.They offer high-efficiency with low residual ripple and other protection functions.
Interface options
Dual interface (USB/LAN) R&SHO732 - RS stock no. 174-2961
Dual interface (RS-232/USB) R&SHO720 - RS stock no. 250-2778
IEEE-488 (GPIB) interface R&SHO740 - RS stock no. 250-2779
Rohde & Schwarz Digital Bench Power Supply HMP Series
#Grup produk P112160463
Sebelum PPN:
Rp67.999.900 - Rp96.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Bench Power Supply Type | Programmable Power Supply |
|---|---|
| Digital/Analog | Digital |
| Input Connector | IEC 320-C14 |
| Maximum Temperature (°C) | 40 |
| Minimum Temperature (°C) | 5 |
| Number of Displays | 1 |
| Output Connector (mm) | 4mm Safety Socket |
| Output voltage (V) | 0-32 |
| Series | HMP |
| Supply Voltage (V) | 230 ac |
| Type | Digital |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- High-resolution for settings and read back and up to 1mV and 0.1A,0.2A or 1.0A- Adjustable overload and overvoltage protection in the form of an electronic fuse or as otherwise called FuseLink for each channel
- Multiple interface options in the form of RS-232, USB, Ethernet and GPIB card, specially for remote control feature
- Integrated free PC software for generating user defined waveforms
- Isolated yet easily combinable channels for driving balanced circuitries
- Easily programmable time-voltage and time-current curve for advanced serial and parallel operation
- Simultaneous voltage, current and power display
- Rack-mountable
Use
- General laboratories- Education
- Industrial applications
- Production units
- Workshops
