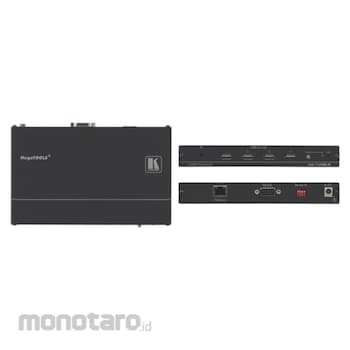

Kramer USB Twisted Pair Receiver
#Grup produk P111560152
Spesifikasi
| Baud Rate (Kbps) | Up to 115.2, full duplex |
|---|---|
| Current (mA) | 760 |
| Dimensions (WxDxH) (cm) | 18.75x11.50x2.54 |
| Humidity (%RH) | 10 to 90 (non-condensing) |
| Included Accessories | Power supply |
| Input | 1 twisted pair on an RJ-45 connector, 1 IR on a 3.5mm mini jack |
| Operating Temperature (°C) | 0 to +40 |
| Option | RK-T2B 19inch rack adapter |
| Output | 4 USB on USB A-type connectors, 1 bidirectional RS-232 on a 9-pin D-sub connector |
| Power Consumption (V) | 5 DC |
| Storage Temperature (°C) | -40 to +70 |
| Transmission Range (m) | Up to 100 |
| USB Support | 1.1 and 2.0 (bulk mode, not isochronous) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The VA-1USB-R is a high-performance,twisted pair receiver for communicatingUSB, bidirectional RS-232 data and IRsignals over extended distances using CAT5/6 cable. The unit receives a twisted pairsignal from the VA-1USB-T and converts itback to USB signals and RS-232 data.
