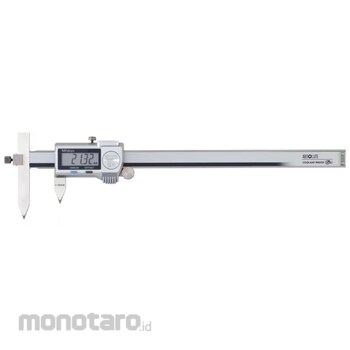

Mitutoyo Offset Caliper for Digimatic Hole Pitch (Jangka Sorong)
#Grup produk P111524868
Spesifikasi
| AS ONE Part Number | 65-2063-89 |
|---|---|
| Allowable Tolerance (mm) | Max. ±0.04 |
| Approximate Battery Life (year) | 5 (at regular use) |
| Dimension H (mm) | 20 |
| Dimension W (mm) | 100 |
| Dimensions t (mm) | 3.8 |
| Maximum Response Speed | Unlimited |
| Measuring Range (mm) | 10.1-310 |
| Minimum Reading (mm) | 0.01 |
| Mistutoyo Product No. | 573-608-20 |
| Position Detection Method | Electromagnetic induction type absolute encoder |
| Power Supply | Button type silver oxide battery SR44 (1 piece) (standard accessory for monitor) |
| Protection Class | IP67 (IEC60529 / Not a water resistant type, so rust prevention treatment is required after use.) |
| Quantization Error | Does not include ± 1 count |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Series | 573 |
| Suitable Hole (mm) | 1.5-9.5 |
| Type | Digimatic (LCD) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Products with proofreading documents cannot be canceled after ordering.- Products with proofreading documents and traceability system diagrams can only be ordered online.
- Applicable documents are included only with products whose part number includes (JCSS calibration book included), (general calibration book/traceability system diagram included), or (calibration book/traceability system diagram included).
- Products with calibration certificates include "Mitutoyo calibration certificate with traceability system chart", which is calibrated by the manufacturer, and "calibration calibration certificate by calibration company, with traceability system diagram", which is calibrated at calibration points based on ISO91 quality management system. Comes with a traceability system diagram.
- Products that include (with English version calibration certificate) in the product number will be calibrated at a calibration point based on the standards of an external calibration company based on the ISO quality management system, and will be shipped after the document is issued.
Feature
- Quickly measure the center-to-center dimension of holes.The electromagnetic induction absolute encoder allows you to use it without worrying about the main scale getting dirty during measurement.- ABS (absolute) scale eliminates the need for troublesome origin setting when turning on the power. Unlimited response speed.
- Equipped with an offset function that allows direct reading of measured values
- There is an output terminal for measurement data.
