-Load protection relay for motor damaged from gear, or shaft of motors obstruction
-Applied measurement methods of angle's difference between current and voltage of motor . Cos is between 0 to 0.9.
-Can connect with every sizes of motors. Incase that electricity current is over than 5 A, it can be connected by current transformer.
-Can adjust position of cos setpoint making relay automatically cuts circuit in case of error happened with mode.
-Installed with adjustable button of start delay ( S.D. ) to prevent relay not to cut circuit when motor is starting

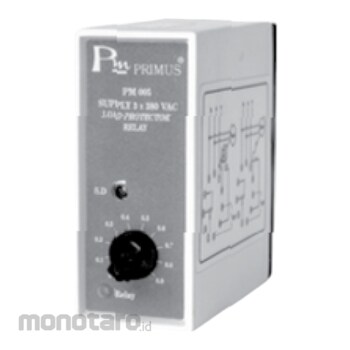

Primus Load Protection Relay
#Grup produk P111518344
Spesifikasi
| Adjust Cos φ | Scale 0 - 0.9 |
|---|---|
| Adjust Start Delay (s) | Scale 5-70 |
| Display | LED Green (Relay) |
| Frequency (Hz) | 50-60 |
| Hysteresis | 0.03 |
| Operating Temperature (°C) | 0-50 |
| Power Consumption (VA) | 2.5 |
| Relay Contact Current (A) | 10 |
| Relay Contact Voltage (V) | 250 AC |
| Supply Voltage (V) | 3x380 AC ±10% |
