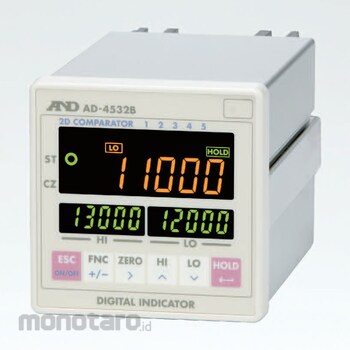

AND AD-4532B Digital indicator for Strain Gauge Sensors

Features
-New Tricolor (Orange, Green & Red) LED Display
Highly visible easy-to-read display
-Enhanced comparator functions
In addition to a simple comparison of the upper/lower limit, the AD-4532B is equipped with a 2D comparator function that shifts
between the upper/lower limit in five levels using a time control or an external signal.
-2D (5-level) comparator function
This function makes it possible to determine the
acceptability of the total result by performing a sequential
comparison while shifting between the upper/lower limit in
five levels using a time axis or an external input (trigger).
It is ideal for use in measurements, such as a press-in
operation, which require changes in the comparison
value as time elapses.
The five comparators can also be used individually.
-High-speed A/D*1 and D/A*2 conversion function at 2000 times/sec.
*1 Analog-to-digital conversion *2 Digital-to-analog conversion
Calibration without an actual load
The digital span calibration function makes it possible to perform a calibration by entering the rated output (mV/V) of the sensor
using the numeric keys. This function is useful when an actual load cannot be applied.
Latching function
The display, the comparator output and the D/A voltage output can be latched (data output hold).
Relay output with a long-life MOSFET relay
Chatter-prevention function
If bouncing of the comparator value occurs repeatedly near the upper/lower limit, a heavy burden will be placed on the relay
circuit and other parts. To prevent this, the AD-4532B has a function to set the hysteresis width and time.
-Wide variety of data input/output
The AD-4532B comes equipped with an analog amplifier voltage output (±10V), a D/A analog voltage output (±10V),
a comparator output and a Modbus-RTU input/output. In addition, we offer an optional BCD output, RS-232C input/output,
D/A analog voltage/current output (±10V / 4 to 20mA) and Ethernet. The upper/lower limit setting, the zero compensation
function and the hold function can be executed via Modbus-RTU.
