INA Bush EGBZ Type
#Grup produk P110025254
Spesifikasi
| Outside Diameter, Lower Tolerance (Do UT) (mm) | 0.03 |
|---|---|
| Wall Thickness, Lower Tolerance (s3 UT) (mm) | -0.02 |
| Chamfer Angle Outside Diameter (f) (°) | 20 |
| Outer Chamfer (f) (mm) | 0.6 |
| Inner Edge Break, Max. (Fi max) (mm) | -0.6 |
| Inner Edge Break, Min. (Fi min) (mm) | -0.1 |
| Basic Dynamic Load Rating, Radial (Cr) (N) | 22600 |
| Basic Static Load Rating, Radial (C0r) (N) | 40300 |
| Inner Diameter (di) (mm) | 12.7 |
| Maximum Operating Temperature (Tmax) (°C) | 280 |
| Minimum Operating Temperature (Tmin) (°C) | -200 |
| Outer Diameter do (mm) | 15.082 |
| Outside Diameter, Upper Tolerance (Do OT) (mm) | 0.065 |
| Wall Thickness (s3) (mm) | 1 |
| Wall Thickness, Upper Tolerance (s3 OT) (mm) | 0.005 |
| Width B (mm) | 12.7 |
| Width, Lower Tolerance (BUT) (mm) | -0.25 |
| Width, Upper Tolerance (BOT) (mm) | 0.25 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

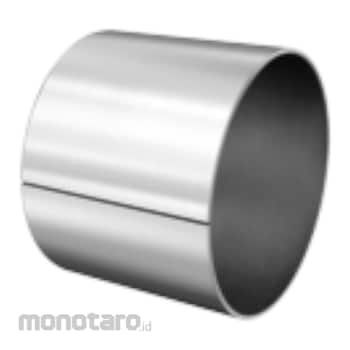

Metal/polymer composite plain bush, maintenance-free, with steel backing, inch size
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
