Kramer Computer Graphics Video Stereo Audio & Bidirectional RS-232 over Twisted Pair Receiver with EDID
#Grup produk P107863991
Spesifikasi
| Input | 1 CAT 5 |
|---|---|
| Output | 1 VGA/HD 1 RS-232 |
| Product Dimensions (WxDxH) (cm) | 12.00x7.15x2.44 |
| Humidity (%) | 10to90,RHL non-condensing |
| Bandwidth (-3Db) Video | 20Hz to 20kHz @3dB |
| Current Comsumption (mA) | 760 |
| Included Accessories | Power supply |
| Operating Temperature (°C) | 0to+40 |
| Shipping Dimensions (cm) | 15.70x12.00x8.70 |
| Storage Temperature (°C) | -40to+70 |
| Voltage (V) | 12DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi

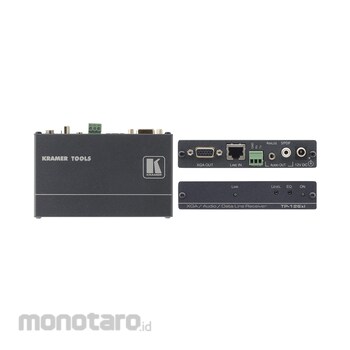

The TP−126xl is an extended range twisted pair receiver for computer graphics video, unbalanced stereo audio and bidirectional RS−232 control command signals. The unit receives a twisted pair signal from the TP−125xl that it converts to computer graphics video, RS−232, unbalanced stereo and S/PDIF audio signals.
Fitur
Max. Resolution — WUXGA & 1080p.HDTV Compatible.
System Range — More than 820ft (more than 250m).
Cable — We recommend the use of Kramer's BC–XTP high quality skew–free, unshielded twisted pair (UTP) cable. When using UTP cable, it is advisable to ensure that the cable is installed far away from electric cables, motors and so on, which are prone to create electrical interference.
Bidirectional RS–232 Interface — Commands and data can flow in both directions via the RS–232 interface, allowing status requests and control of the destination unit.
