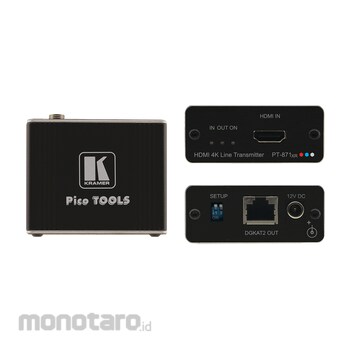

PT−871xr is a high−performance, long−reach DGKat™ 2.0 transmitter for 4K@60Hz (4:4:4) HDR HDMI 2.0 and HDCP 2.2 signals and 2−way powering over twisted pair. It converts the HDMI signal into the transmitted DGKat™ 2.0 signal. PT−871xr extends the signal to up to 60m (200ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@30Hz (4:4:4) 24bpp resolution over Kramer shielded cables.
NOTE: To reach the distances listed, Kramer UNIKAT non−plenum bulk cable or pre−made assemblies MUST be used.
Kramer 4K HDR HDMI Compact PoC Transmitter over Long–Reach DGKat 2.0
#Grup produk P107863496
Spesifikasi
| Input | 1 HDMI 4K60 4:4:4 |
|---|---|
| Output | 1 DGKat 2.0 |
| Product Dimensions (WxDxH) (cm) | 6.22x5.18x2.44 |
| Video Max Resolution at Standard Compression Level | 4096x2160@60Hz (4:4:4) 24bpp |
| Video Max Resolution at High Compression Level | 3840x2160@60Hz (4:4:4) 24bpp |
| Video Standards Compliance | HDR10, HDCP 2.2 |
| Accessories Included | 1 power adapter with cord, 1 bracket set |
| Bandwidth Video Transmitted Data | Up to 18Gbps (6Gbps per graphic channel) |
| Current Comsumption (A) | 2 |
| Current Comsumption (mA) | 600 |
| Enclosure Cooling | Convection ventilation |
| Enclosure Size | PicoTools |
| Enclosure Type | Aluminium |
| Extension Line Compliance | DGKat 2.0 |
| Extension Line Signal Compression | Standard or high compression level applied to >1080p signals |
| Shipping Dimensions (cm) | 49.00x18.60x58.80 |
| User Interface Controls | Dipswitches to define compression level |
| User Interface Indicators | IN, OUT, and ON LEDs |
| Voltage (V) | 12DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi
Fitur
High Performance Extender — Professional DGKat™ 2.0 transmitter for providing long–reach signals and 2–way power over twisted pair copper infrastructures. PT–871xr employs low–level video compression technology that delivers visually lossless performance for 4K@60Hz (4:4:4) HDR signals with near–zero latency.HDMI Signal Extension — Supports HDR, HDCP 2.2, deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
Multi–channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
Cost–effective Maintenance — Status LED indicators for HDMI and DGKat™ 2.0 ports facilitate easy local maintenance and troubleshooting.
Easy Installation — Single twisted–pair cable for signal and power wiring. Compact PicoTOOLS® fan–less enclosure for device–back mounting, or side–by–side mounting of 4 units in a 1U rack space with the optional, compatible Kramer rack adapter.
