Kramer 4K60 Multi–Standard Transceiver
#Grup produk P107862451
Spesifikasi
| Input | 2 HDMI 4K60 4:4:4 |
|---|---|
| Output | 1 HDMI 4K60 4:4:4 Ports: -1 Ethernet |
| Product Dimensions (WxDxH) (cm) | 14.30x12.20x4.36 |
| Video Compression Standard | H.264 or H.265 |
| Video Max Resolution-One Stream | 4K@60Hz (4:4:4) |
| Video Max Resolution-Two Simultaneous Streams | 4K@60Hz (4:2:0) |
| Ports Balanced Audio | 1 On a 5-pin terminal block connector |
| Ports Ethernet | 1 On an R-J45 connector |
| Ports Serial USB | On a mini USB connector |
| Power Consumption (W) | 20,4 |
| Shipping Dimensions (cm) | 31.90x16.50x6.70 |
| User Interface Controls | Restart and factory reset front panel buttons, API, embedded web pages, and RTSP via Ethernet, API commands via serial USB |
| User Interface Indicators | Link and power LEDs |
| Voltage (V) | 12DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi

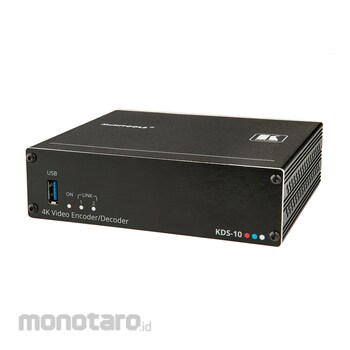

KDS−10 is an advanced, dual stream transceiver for streaming 4K@60Hz (4:4:4) video signals via Ethernet over copper cable. KDS−10 can be set as either an encoder or decoder. As an encoder, it encodes and streams one or two HDMI inputs over an IP network. As a decoder, it receives the encoded signal, decodes it and outputs it to an HDMI output.
Fitur
Advanced Video Streaming Transceiver — Streams up to 4K@60Hz (4:4:4) resolution signals over a 1G network interface, when streaming one source and 4K@30Hz (4:2:0) when streaming two sources.Multi–Standard Video Coding — Configure the transceivers according to your needs to stream using either H.264 or H.265.
Flexible Input and Output Options — Includes two HDMI inputs that can be streamed alternately or simultaneously.
Streaming Support — Unicast and multicast over RTP (Real–Time Protocol).
Flexible Analog Audio Embedding and De–embedding — When in encoding mode, you can select the balanced analog audio input to embed into the streaming HDMI output signal. When in decoding mode, you can extract the HDMI audio signal and output it as balanced analog audio.
Convenient and Comprehensive Control — Control the unit using intuitive embedded web pages or Protocol 3000 API commands via Ethernet.
Simple System Management — Remote system management support to enable quick and efficient remote system and device life–cycle management.
