Quickly check fiber activity, polarity, and connectivity
Just place in front of the fiber end face or port and a light and tone indicate an active fiber (850 nm to 1625 nm) - no setup or interpretation required.
This pocket-sized tool tests:
- Single-mode
- Multimode
- UPC and APC patch cords
- Ports with a non-contact / non-contaminating detector
The LightBeat™ feature flashes the LED, indicating a powered-on condition and good battery and a timer shuts FiberLert™ off after five minutes of inactivity to extend battery life (2xAAA, included). Rugged design includes a convenient pocket clip and is backed by a two-year warranty.

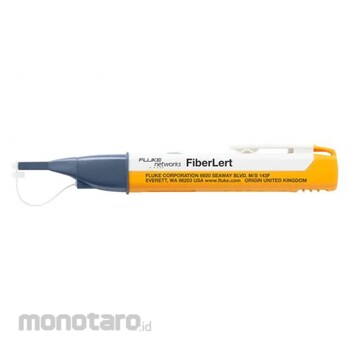

FLUKE Networks Detektor Serat Optik FiberLert
#Grup produk P107698883
Spesifikasi
| Operating Principle | FiberLert is a live fiber detector that senses near infrared light emitted from fiber optic cabling. A continuous red glow at the handle and an audible beeping noise (if not switched off) indicates the presence of near infrared light. |
|---|---|
| Optical Interface | Non-contact ceramic ferrule. Fits directly with 1.25 mm LC receptacles. Tethered ferrule adapter for testing 1.25 mm ferrule patch cord. Supports single-mode, multimode, UPC and APC connectors and ports. |
| Wavelength Detection (Nm) | 850 to 1625 |
| Optical Power Detection Range (dBm) | +3 to -30 |
| Light Detection | Visible steady red LED indicator when optical power is detected |
| Lightbeat Indicator | Flashes twice every two seconds when unit is on and battery strength is sufficient. |
| Batteries | 2 AAA alkaline batteries included |
| Battery Life | Typically, greater than 1 year (5 hrs. of use a week) |
| Battery Saver | Unit automatically turns off after five minutes of inactivity |
| Dimensions (cm) | 1.6x2.5x16.8 (0.6x1.0x6.6inch) |
| Operating Altitude (m) | ≤ 3000 |
| Operating Humidity Ranges (%) | 95 (10 °C to 35 °C), Non-condensing 75 (35 °C to 40 °C) Non-condensing uncontrolled < 10 °C |
| Operating Temperature Range (°C) | -10 to 50 |
| Storage Temperature (°C) | -20 to 50 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Detects optical power in SM and MM fiber (850 to 1625 nm)- No setup or interpretation – light and sound indicate signal
- “Non-contact” detector reduces risk of contamination and damage
- Suitable for ports and patch cords, SM, MM, UPC and APC
- LightBeat™ indicates operation and battery status
