Current level output, waveform output and frequency analog output are possible. Crest value peak hold function that can measure the inrush current at the start of equipment. AC + DC mode that can measure the effective value of full / half wave rectified waveform. AC / DC current and voltage measurement. Frequency measurement.
The non-judgment manual can be downloaded from the manufacturer's HP.
Please check the manufacturer's website for details.
AC / DC200A / RMS
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders on the web.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

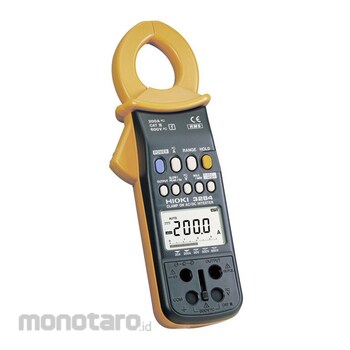

Hioki Clamp-On AC/DC High Tester
#Grup produk P107129693
Kondisi Barang:
Spesifikasi
| AC Current (A) | 200 |
|---|---|
| AC Voltage (V) | 600 |
| Applicable Standards | EN61010 (safety), EN61326 (EMC), current measurement category: CAT3 600V |
| DC Current (A) | 200 |
| DC Voltage (V) | 600 |
| Depth (mm) | 39 |
| Detection Method | true root mean square (RMS) |
| Height (mm) | 230 |
| Maximum Display | 2000 |
| Maximum Measurement Conductor Diameter (mm) | 33 |
| Measurement Function | AC+DC mode, frequency |
| Power Supply | Laminated 9V dry battery (6F22) x 1 (included) |
| Width (mm) | 62 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
