Spesifikasi
Size (mm) | 120x120x25 |
---|---|
Mounting hole spacing (mm) | 105x105 |
Connector & pin-configuration | 4-pin PWM |
Cable Length (cm) | 20 + 30 NA-EC1 extension cable |
Bearing | SSO2 |
Blade geometry | A-Series with Flow Acceleration Channels |
Frame technology | AAO (Advanced Acoustic Optimisation) |
Material | Sterrox LCP |
Rotational speed with L.N.A. (+/- 10%) | 1700 RPM |
Min. rotational speed (PWM, +/-20%) | 450 RPM |
Acoustical Noise (dB(A)) | 18.8 with L.N.A. |
Static Pressure (mm H₂O) | 2.34, 1.65 with L.N.A. |
Max. Input Current (A) | 0.14 |
Speed (rpm) | 2000 |
Air Flow (m³/hour) | 102.1; 18.8 with L.N.A. |
Maximum Input Power (W) | 1.68 |
Rotation Speed (rpm) | 2000 +/- 10% |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |
Informasi Produk
Description

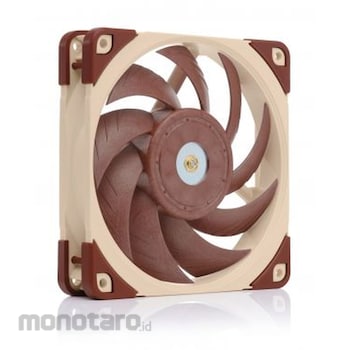

The NF-A12x25 is a highly optimised next-generation 120mm fan that integrates Noctua’s latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. It takes state-of-the-art technologies such as the AAO (Advanced Acoustic Optimisation) frame or Flow Acceleration Channels and combines them with a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox® liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision. Following the approach of Noctua’s A-series, the NF-A12x25 is a true all-rounder that yields superb results in all types of usage, regardless of whether it’s in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators. The 4-pin PWM version supports fully automatic speed control via PWM fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed from 2000 to 1700rpm. Topped off with exceptional running smoothness, Noctua’s reference-class SSO2 bearing, a rich bundle of accessories and 6-year manufacturer’s warranty, the NF-A12x25 is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for the most discerning demands.
Feature
Notes and warnings NF-A12x25 further reading:button Performance comparison to NF-F12 and NF-S12A
button Technical backgrounds and manufacturing challenges
button Interview with Lars Strömbäck (Noctua CTO)
button Which 120mm fan is right for me?
