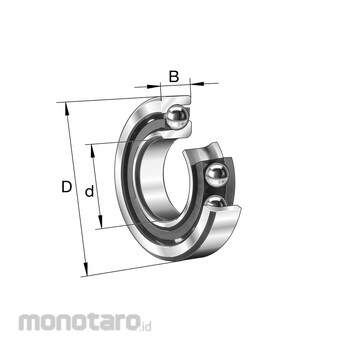

FAG Angular Contact Ball Bearing Series 7310-B-XL-MP-UA
#Grup produk P104829598
Spesifikasi
| A (mm) | 47 |
|---|---|
| Basic dynamic load rating, radial C0r (N) | 5000 |
| Bore Diameter d (mm) | 50 |
| Contact angle α (°) | 40 |
| Distance Between the Apexes of the Pressure Cones a (mm) | 47 |
| Fatigue load limir, radual Cur (N) | 3500 |
| Inner Diameter d (mm) | 50 |
| Limiting Speed nG (rpm) | 9900 |
| Maximum Diameter of Housing Shoulder Da max (mm) | 99 |
| Maximum Fillet Radius of Housing ra1 max (mm) | 1 |
| Maximum Fillet Radius of Shaft ra max (mm) | 2 |
| Maximum Operating Temperature (Tmax) (°C) | 150 |
| Minimum Diameter of Shaft Shoulder da min (mm) | 61 |
| Minimum Operating Temperature (Tmin) (°C) | -30 |
| Minimum chamfer dimension r1min (mm) | 1 |
| Minimum chamfer dimension rmin (mm) | 2 |
| Outer Diameter d (mm) | 110 |
| Outside Diameter D (mm) | 110 |
| Reference Speed (n ϑr) (1/minute) | 6100 |
| Shoulder Diameter on Inner Ring Wide Side Face D1 (mm) | 73.1 |
| Shoulder Diameter on Outer Ring Wide Side Face D1 (mm) | 87.6 |
| Width B (mm) | 27 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
152247310-B-XL-MP-UAFeature
Type of suffixes for Double row angular contact ball bearingsB : Modified internal construction, nominal contact angle α = 25°, without filling slot
BD : Modified internal construction, nominal contact angle α = 30°, without filling slot
C2 : Axial internal clearance C2 (smaller than normal)
C3 : Axial internal clearance C3 (larger than normal)
C4 : Axial internal clearance C4 (larger than C3)
DA : Inner ring split, nominal contact angle α = 45°
M : Solid brass cage, ball-guided
MA : Solid brass cage, guided on outer ring
TVH : Solid cage made from glass fibre reinforced polyamide PA66, ball-guided
2HRS : Contact seal on both sides, axial contact (lip seal)
2RS : Contact seal on both sides, axial contact (lip seal)
2RSR : Contact seal on both sides, radial contact (lip seal)
2RZ : Non-contact seal on both sides (rubberised gap seal)
2Z : Non-contact sealing shield on both sides (sheet metal gap seal)
HRS : Contact seal on one side, axial contact (lip seal)
RS : Contact seal on one side, axial contact (lip seal)
RSR : Contact seal on one side, radial contact (lip seal)
RZ : Non-contact seal on one side (rubberised gap seal)
Z : Non-contact sealing shield on one side (sheet metal gap seal)
XL : X-life bearing, dependent on bore code and bearing type
Type of suffixes for Single row angular contact ball bearings
B : Modified internal construction, nominal contact angle α = 40°
JP : Sheet steel cage
MP : Solid brass cage
TVH, TVP : Solid cage made from glass fibre reinforced polyamide PA66
P5 : Bearing in tolerance class 5
2RS : Contact seal on both sides (lip seal)
UA : Universal design for fitting in pairs, bearing pair has a small axial internal clearance in O and X arrangement
UB : Universal design for fitting in pairs, bearing pair has a smaller axial internal clearance in O and X arrangement than in UA
UH : Universal design for fitting in pairs, bearing pair has a high preload in O and X arrangement
UL : Universal design for fitting in pairs, bearing pair has a light preload in O and X arrangement
UM : Universal design for fitting in pairs, bearing pair has a moderate preload in O and X arrangement
UO : Universal design for fitting in pairs, bearing pair is clearance-free in O and X arrangement
XL : X-life bearing, dependent on bore code and bearing type
