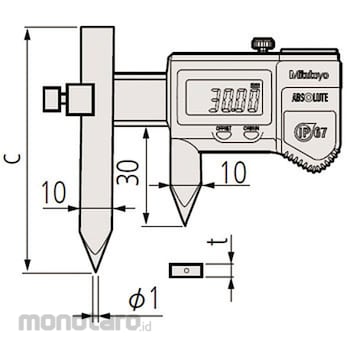

Mitutoyo Digimatic Offset Centerline Caliper (Jangka Sorong)
#Grup produk P103935874
Spesifikasi
| Maximum Response Speed | No limit |
|---|---|
| Instrument Difference (mm) | +/- 0.03 |
| Dimension H (mm) | 16 |
| Compatible Hole (mm) | phi 1.5 ~ 10 |
| Power Supply | Button type silver oxide battery SR44 (No.938882) x 1 |
| Minimum display amount (mm) | 0.01 |
| Degree of Protection | IP67 |
| Dimension W (mm) | 75 |
| Dimensions t (mm) | 3.5 |
| Position Detection Method | Electromagnetic induction type absolute encoder |
| Quantization Error | Not including +/- 1 count |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Items with calibration documents cannot be canceled after ordering. - For products with proofreading and traceability charts, only orders on the web will be accepted. - Documents that include (JCSS Calibration Certificate), (General Calibration Certificate / Traceability System Diagram) and (Calibration Certificate / Traceability System Diagram) are included in the product number. - For products with calibration documents, " Mitutoyo Calibration Certificate with Traceability System Diagram '', which the manufacturer performs calibration, and " Calibration Company Implementation Calibration Certificate, '' which performs calibration at calibration points based on the calibration company based on the ISO 9001 quality management system With traceability system diagram ".Feature
- Quick measurement of hole center dimensions. ABS type with absolute origin. There is an output terminal for measurement data, and a statistical process control system or measurement system can be configured.Ulasan Produk
