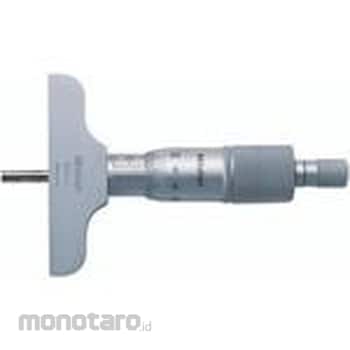

Mitutoyo Depth Micrometer Single Unit
#Grup produk P103935315
Spesifikasi
| Scale Interval (mm) | 0.01 |
|---|---|
| Series | 128 |
| Base Dimensions (mm) | 63.5x16 |
| Type | Depth |
| Flatness (µm) | 1.3 (Reference plane length 63.5mm) 2 (Reference plane length 101.6mm) |
| Instrument Error (µm) | +/- 3 |
| Measuring Range (mm) | 0-25 |
| Mitutoyo Part Number | 128-101 |
| TRUSCO Number | 157-5309 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Items with calibration documents cannot be canceled after ordering. - For products with proofreading and traceability charts, only orders on the web will be accepted. - Documents that include (JCSS Calibration Certificate), (General Calibration Certificate / Traceability System Diagram) and (Calibration Certificate / Traceability System Diagram) are included in the product number. - For products with calibration documents, " Mitutoyo Calibration Certificate with Traceability System Diagram '', which the manufacturer performs calibration, and " Calibration Company Implementation Calibration Certificate, '' which performs calibration at calibration points based on the calibration company based on the ISO 9001 quality management system With traceability system diagram ".Feature
- Spindle diameter: phi 4mm. - With clamp. - There is also a cemented carbide tip on the measuring surface. - With constant pressure device.Ulasan Produk
