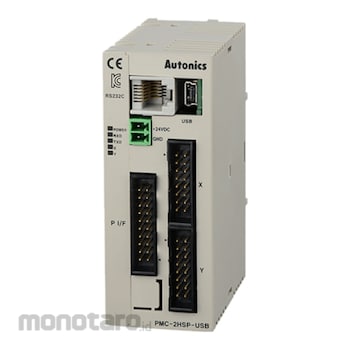

Autonics Motion Controllers Stand-alone Type PMC-2HSP Series
#Grup produk P103146902
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp4.699.900 - Rp4.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accessories | • [Common] Power connector, I/O connector: 3 (PI/F, X-axis, Y-axis), RS232C Communication cable (1.5m): 1 • [USB type] USB Communication cable 1m: 1 •[RS485 type] RS485 connector: 1 |
|---|---|
| Ambient Humidity (% RH) | 20 to 90%RH, storage: 20 to 90%RH |
| Ambient Temperature (°C) | 0 to 45, storage: -15 to 70 |
| Applied Library | C programming language(provided DLL) |
| Communication Protocol | Modbus RTU |
| I/O | • Parallel I/F (CN3): 13 inputs, 4 outputs • X-axis (CN4) / Y-axis (CN5): 8 inputs, 6 outputs (general-purpose I/O, two of each) |
| In-Position Setting | Absolute, Incremental |
| Index Step Numbers | 64 indexes per axis |
| Input/Output Contact | Parallel I/F: 13/4 X-axis: 8/6 (general: 2/2) Y-axis: 8/6 (general: 2/2) |
| Interpolations | 2-axis linear interpolation, circle interpolation, arc interpolation |
| Main Features | S-shaped acceleration/deceleration |
| Number of Axes | 2-axis |
| Operation Mode | INDEX, PROGRAM(200-step), JOG, CONTINUOUS |
| Power Supply (V) | DC 24 |
| Speed (pps to Mpps) | 1 to 4 |
| Type | Independent type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The PMC-2HSP series interpolation type motion controllers feature high-speed independent 2-axis control with processing speed up to 4 Mpps. The PMC-2HSP series supports linear and circular interpolation control. 200 steps of operation programming is possible with 17 control and 4 operation modes are available (scan, continuous, index, program). Multiple control of up to 32-axes (16 units) is possible with RS485 communication (Modbus RTU).
