-Adopted a contact that enables easy insertion and has excellent holding power.
-Compatible with ML connector.
-For relay connection.
-4.5mm pitch for wire to wire connection.

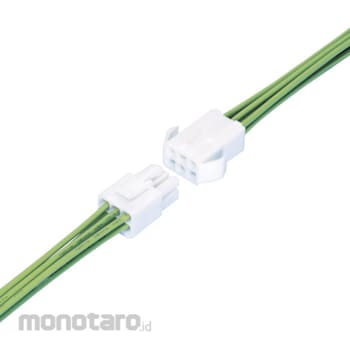

JST EL CONNECTOR Housing
#Grup produk P102611241
Spesifikasi
| Applicable Cable Range | AWG#26 to #16, 0.13 to 1.25mm<SUP>2</SUP> |
|---|---|
| Dimension A (mm) | 24.6 |
| Insulation Resistance | 1000MΩ or more |
| Material | Nylon 6 (UL94V-0) |
| Rated Current | MAX 10A |
| Rated Voltage | MAX 300V |
| Voltage resistance | AC1500V/1Min. |
| Working Temperature Range | -25 to +90°C (includes temperature increase value) |
