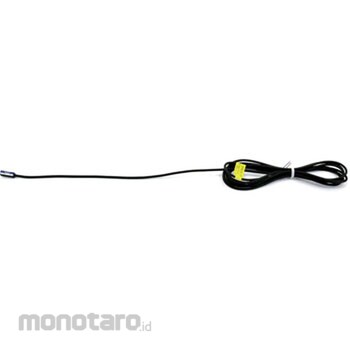

KOGANEI Reed Switch Sensor Switch CS M
#Grup produk P102554405
Spesifikasi
| Indicator Lamp | Red LED indicator lit when ON |
|---|---|
| Lead Wire | PVC 0.2 SQx2 coresx3000 |
| Ambient Temperature (°C) | 0 to 60 |
| Correspondence/Support | Slim cylinder, twin port cylinder,gA, ORC, ORCA, ORGA, ORK (excluding φ 16) etc. |
| Impact Resistance | 294.2m/s² (nonrepetitive) |
| Insulation Resistance | 100mΩ MIN. (With DC 500V megger, between case-lead terminal) |
| Leakage Current | 0mA |
| Response Time | 1ms MAX. |
| Storage temperature range | -10 to 70°C |
| Vibration Resistance | 88.3 m/s² (double amplitude 1.5mm, 10 to 55Hz) |
| Wiring System | 2 wire type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* The band is not included.Ulasan Produk
