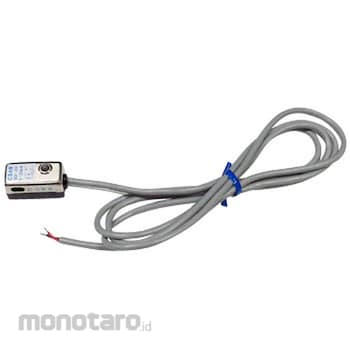

KOGANEI Reed Switch Sensor Switch CS B
#Grup produk P102554399
Spesifikasi
| Lead Wire | VCT0.3 SQx2 coresx1500mm |
|---|---|
| Indicator Lamp | Red LED indicator lit when ON |
| Voltage Load | DC 5 to 30V |
| Vibration Resistance | 88.3m/s² (double amplitude 1.5mm, 10 to 55Hz) |
| Load Current | 5 to 25mA |
| Ambient Temperature (°C) | 0 to 60 |
| Impact Resistance | 294.2m/s² (nonrepetitive) |
| Insulation Resistance | 100mΩ MIN. (With DC 500V megger, between case-lead terminal) |
| Leakage Current | 0mA |
| Response Time | 1.2ms MAX. |
| Storage temperature range | -10 to 70°C |
| Wiring System | 2 wire type |
| Withstand Voltage | AC 500V (50/60Hz) 1 minute (between case and lead terminal) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Ulasan Produk
Tidak ada ulasan
