Latch type locking device that works reliably (spring type tightening mechanism). Automatic tightening mechanism with strong force by hanging load. The grip force is proportional to the loading load/it does not wastefully scratch the load. Induction hardened special alloy steel cam. High tensile strength steel body with weld structure strong against cracks. Circular swinging jaw that grasps the load gently. Large hanging ring which is easy to handle. Baking finish (epoxy paint) finish
Useable: Horizontal fishing, horizontal fishing, construction, transportation, reversal, rotation, welding, assembly, mounting, press processing, bending processing

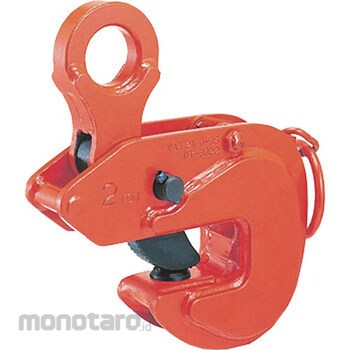

Eagle Clamp Shape Steel Clamp
#Grup produk P102553354
Spesifikasi
| Dimension F | 223 to 257mm |
|---|---|
| Working Load | (Minimum to maximum) 200 to 1000kg |
| Compatible Board Thickness | 43189mm |
| Compatible Parts Materials | Steel bars, steel steel structures, steel plates, steel beams, steel frames, shipbuilding long bars, crane beams, end plates, pipes, etc. |
| Dimension A (mm) | 32 |
| Dimension B | 50mm |
| Dimension E | 30mm |
| Dimension G | 52mm |
| Dimension I | 18mm |
| Dimension W1 (mm) | 60mm |
| Dimension W2 (mm) | 32mm |
| Dimensions D(ɸmm) | 40mm |
| Dimensions c | 150mm |
| Dimensions h | 165mm |
| Dimensions k | 228mm |
| Dimensions r | 40mm |
