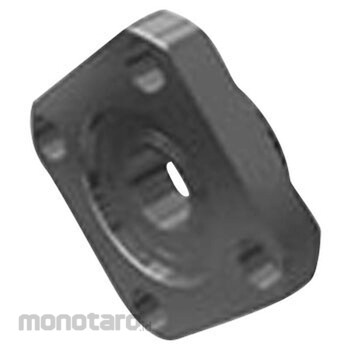

THK Supporting Unit for Ball Screw Round Shape on Support Side (φ 6 to φ 30)
#Grup produk P102543694
Spesifikasi
| Use Axis | C8 |
|---|---|
| Bearings to Use | 608ZZ |
| P.C.D | 35mm |
| Dimension A (mm) | 43φ |
| Dimension B | 35mm |
| Dimension D (mm) | 28φ (-0.007/-0.02) |
| Dimension D1 | 3.4φ mm |
| Dimension D2 | 6.5φ mm |
| Dimension F | 5mm |
| Dimension L | 12mm |
| Dimensions h | 4mm |
| Shaft Diameter d | 8φ mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Considering the balance of rigidity with the ball screw, high rigidity and low torque angular bearing (contact angle 30 degrees, DF combination) is used. It is a compact structure that takes space around the installation into account. In addition, since preload-adjusted bearings are incorporated, it is possible to assemble in the same state, reducing the number of assembly steps and improving the assembly accuracy.
