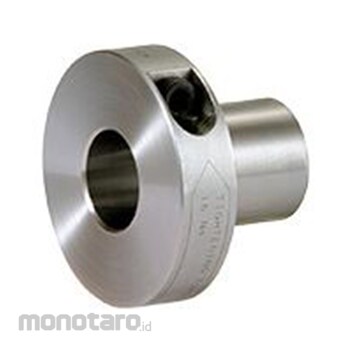

Miki pulley ETP Bush ETP-T Series
#Grup produk P102543621
Spesifikasi
| Screw Diameter | M16 |
|---|---|
| Moment of Inertia | 1.70x10⁻³kg/m² |
| Maximum Allowable Thrust Force | 60000N |
| Maximum Allowance of Radial Load | 6000N |
| Maximum Allowable Torque | 1200Nm |
| Dimension D1 | 100mm |
| Axis Aspect Pressure | 90N/mm² |
| Bolt Tightening Torque | 24Nm |
| Dimension D (mm) | 40 |
| Dimension L | 55mm |
| Dimension L1 | 75mm |
| Dimensions D(ɸmm) | 52mm |
| Dimensions n | 8mm |
| Dimensions r | 34mm |
| Hub Aspect Pressure | 70N/mm² |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
High concentricity. It has a completely integrated structure, and the hub can be installed with concentricity of several micro m. One screw for detachment. Easy, quick installation and removal with only one pressure screw. Workspace saving space. Since the pressure screw tightens from the radial direction, it does not take space for installation. No key machining required. Troubles caused by keys such as key groove machining are eliminated. Machining tolerances of shafts and hubs are general tolerances and do not require any special finishing. Thrust load zero. Only the radial load acts on the shaft and hub, and no thrust load is applied.
