OMRON Ethernet unit 100BASE-TX type CJ1W-ETN21
#Grup produk P102370973
Spesifikasi
| Type | 100BASE-TX (can be used as 10BASE-T) |
|---|---|
| Suitable For | (PLC) CS series |
| Number of Occupied Units | Unit 1 |
| Applicable Standard | cULus (Class I Div2 Hazardous Location Certified Product), NK, Lloyd, EC Directive |
| Transmission line | Star shape |
| Communication Function | FINS communication service (TCP / IP, UDP / IP), FTP server function, socket service, mail transmission service, mail reception (remote command reception), PLC built-in clock automatic adjustment, server host name designation |
| Access Method | (Medium) CSMA / CD |
| Conform to | (Duplicate) not possible |
| Current Consumption (mA) | Unit / 370 or less (DC5V) |
| Method | Modulation / baseband |
| Mounting Position | CPU device or expansion device |
| Number of Cascade Connections | No restrictions on the use of switching hubs |
| Number of Connections | Maximum 4 units (including extension device) |

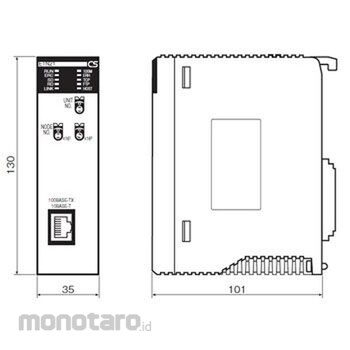

| Outer dimensions, Width W x Height H x Depth D (mm) | 35x130x101 |
| Transmission Speed | 100 Mbit / s (100BASE-TX), 10 Mbit / s (10BASE-T) |
| Transmission distance (m) | 100 (distance between hub and node) |
| Unit Type | CS series CPU high-performance unit |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Production management and manufacturing site can be organically connected via Ethernet. . By choosing various communication services according to your needs, you can flexibly integrate PLCs into Ethernet of information network.
