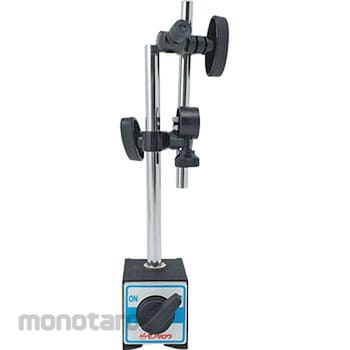

monotaro Fine Feeding Magnetic Base (Stand Magnet)
#Grup produk P101563480
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| Dial Gauge Mounting Hole (mm) | 6 / 8mm |
|---|---|
| Mounting Screw Hole Size | M8 x 1.25 |
| Magnet Dimensions (mm) | 50 x 58 x 55 |
| Adsorption Power | 800N (80kg) * The maximum suction force is the value of SS41, thickness of 10mm, ground surface. |
| Main pillar dimensions (diameter x length L) (mm) | phi 12 x 170 |
| Mass (kg) | 1.4 |
| Prop Dimensions (Diameter x Length L) (mm) | phi 10 x 150 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
It realizes stable measurement with a powerful magnet and a rugged frame. Adjustment of position feed can be done because the fine movement device is attached to the support. ou can switch ON / OFF by operating the changeover switch. Please use it as a measuring holder for dial gauge and lever type dial gauge.
